HEMCO grouting plants are specially designed to mix cement, ultra-fine cement and other admixtures for anchoring, soil nailing and grouting applications. Water, cement and admixtures are batched accurately and then mixed together in a high shear colloidal mixer. The resulting grout is then pumped into an agitator / holding tank where it is slowly agitated as pumping of the grout proceeds.
HEMCO manufactures following grouting units:
1- Batch Mixer HBM-10
2- Grout Pump HGP-13
3- Grout Plant HGU-5

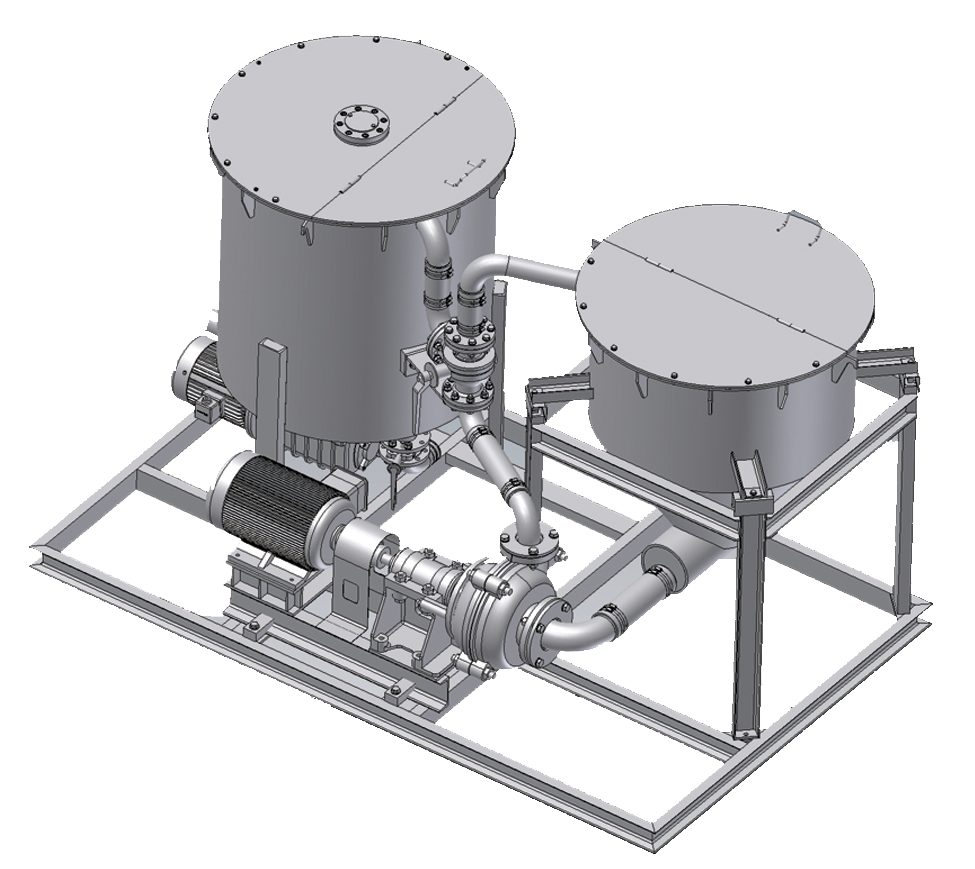

1- Batch Mixer HBM-10
HEMCO Batch Mixer HBM-10 is used for mixing cement, ultra-fine cement, bentonite and other admixtures. Shear colloidal mixing technology makes it most suitable for powder mixing with water.
Main Features
1- Thorough homogeneous mixing
2- Low wear components
3- Manual / automated weigh batching system
4- High volume capacity
5- Hydraulic drive
Technical Specifications
1- Rated output: 10 m³/hr for water-cement ratio of 1:1
2- Power input: 15 kW
3- Volume of mixer: 500 liters
4- Volume of agitator tank: 840 liters
5- Weight: 2500 kg
6- Size: 3,000 x 2,000 x 1,700 mm
2- High Pressure Grout Pump HGP-13
The HGP-13 grout pump is suitable for grouting in soils, ground anchors, earth foundations, waterproofing, tunneling, underwater foundations, bridge decks, deep well casings, slope line grouting etc. Main Features
1- High quality long lasting double piston double acting pump
2- Efficient and user friendly control panel
3- Long lasting valve block
4- Compact structure
Technical Specifications
1- Rated output: 13 m³/hr for water-cement ratio of 1:1
2- Rated pressure: 50 bar
3- Power unit: 30 kW
4- Plunger diameter: 120 mm
5- Motor frequency: 50 Hz
6- Transmission: Hydraulics
7- Maximum particle size: 8 mm
8- Weight: 800 kg
9- Size: 1,550 x 1,500 x 1,700 mm
Note: Batch mixer HBM-10 & High Pressure Grout Pump HPG-13 can be installed in a standard 20ft container as one integrated grout plant

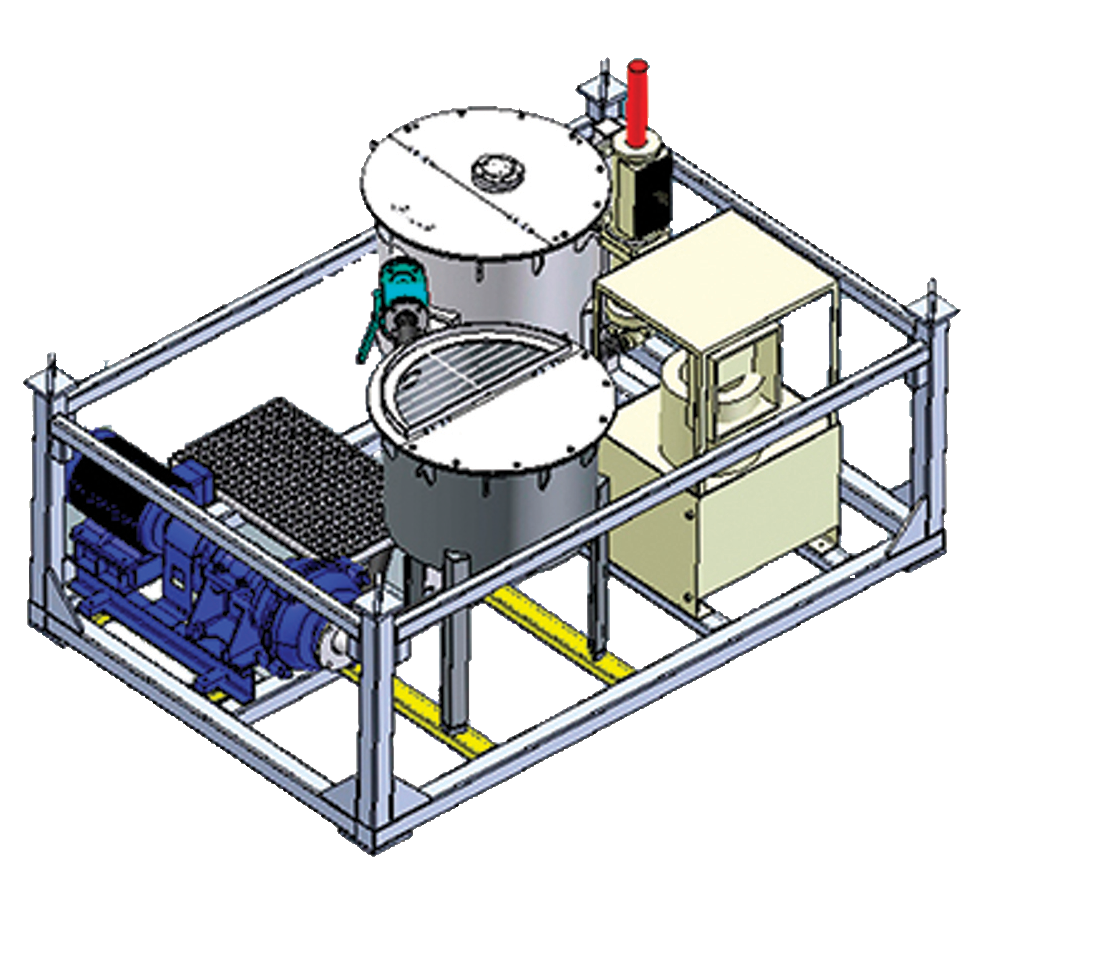

3- Grout Plant HGU-5
HEMCO grout plant HGU-5 consists of high shear colloidal mixer, agitator and grout pump installed on a common frame for easy handling at job sites. Typical usage of HEMCO grouting unit is for grouting of soils, ground anchors, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casings, slope line grouting etc.
Main Features
1- Grout Mixer
2- Agitator
3- Grout Pump
Technical Specifications
1- Maximum capacity: 5 m³/h for water-cement ratio of 1:1
2- Rated pressure: 50 bar
4- Plunger diameter: 120 mm
5- Motor frequency: 50 Hz
6- Transmission: Hydraulics
7- Maximum particle size: 8 mm
8- Weight: 2200 kg
9- Size: 3,000 x 2,000 x 800 mm
|
